Name: AC Infinity Air Filter Box with High Efficacy Filter, 6-Inch
SKU: 352738

Description

Duct Filter Box: This is designed for use with inline fans to circulate fresh air and block dust and odors. It is built with 1mm thick cold-rolled steel and aluminum duct flanges, which allow it to withstand extreme weather. A slide lock door enables easy access to the inner chamber, while a soft neoprene layer creates a dust-free seal.

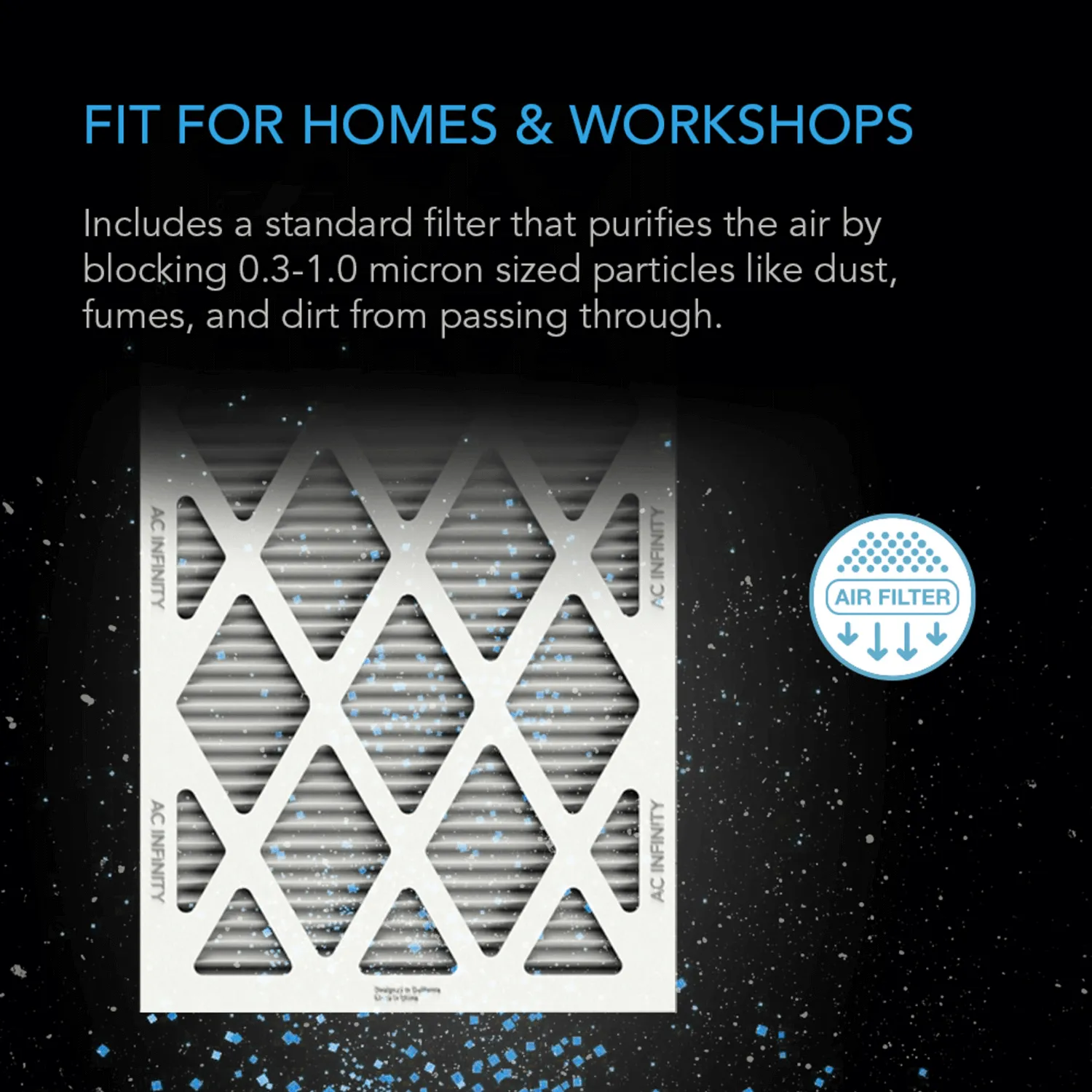

High Efficacy Filter: Included is a standard filter that effectively traps particles like dust, dirt, lint, and odor. The air filter box measures 23.46 x 8.42 x 11.73 inches, fits 6-inch inline fans, accommodates 12 x 20 x 1-inch filters, and provides a maximum circulation of 800 cubic feet per minute.

Product Description: This is a whole-house air filtration system designed for use with inline duct fans such as the Cloudline Series. It blocks particles like dust and dirt from entering your home in intake applications. The box is built using 1mm thick cold-rolled steel with a matte black powder coating. This combines with aluminum duct flanges to create a sturdy, weather-resistant structure. It features a slide lock for easy access to the inner chamber, with a soft neoprene layer for dust-proof sealing.

Applications: The air filter box accepts standard MERV filter replacements that slide into the inner chamber's filter slot. It comes with a high-efficacy pleated air filter, capable of trapping 0.3-1.0 micron-sized particles such as dust, dirt, lint, and odor. The duct flanges fit with matching sized 6-inch inline fans, enabling streamlined installation. Attaching the air filter box at the start of your ductwork will dramatically reduce airborne particles in your home. Use with a high static pressure fan, such as the Cloudline Series of duct fans, is highly recommended for maximum filtration.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: Air Filter Box 6"

Product Model: AC-AFB6

UPC Code: 819137021709

Product and Mounting Dimensions

Duct Opening Size: Approximately 5.78 inches

Total Dimensions: Approximately 23.46 x 8.42 x 11.73 inches

Flange Length: Approximately 3.21 inches

Product Performance and Technical Specs

Box Material: Steel

Flange Material: Aluminum

Finish: Matte Black

Filter Size: Accepts 12 x 20 x 1 inch

Minimum Airflow Range: 182-272 cubic feet per minute

Maximum Airflow: 800 cubic feet per minute

Compatible Fan Models: Cloudline S6, Cloudline T6

Data Sheet

Download the Product Manual:
