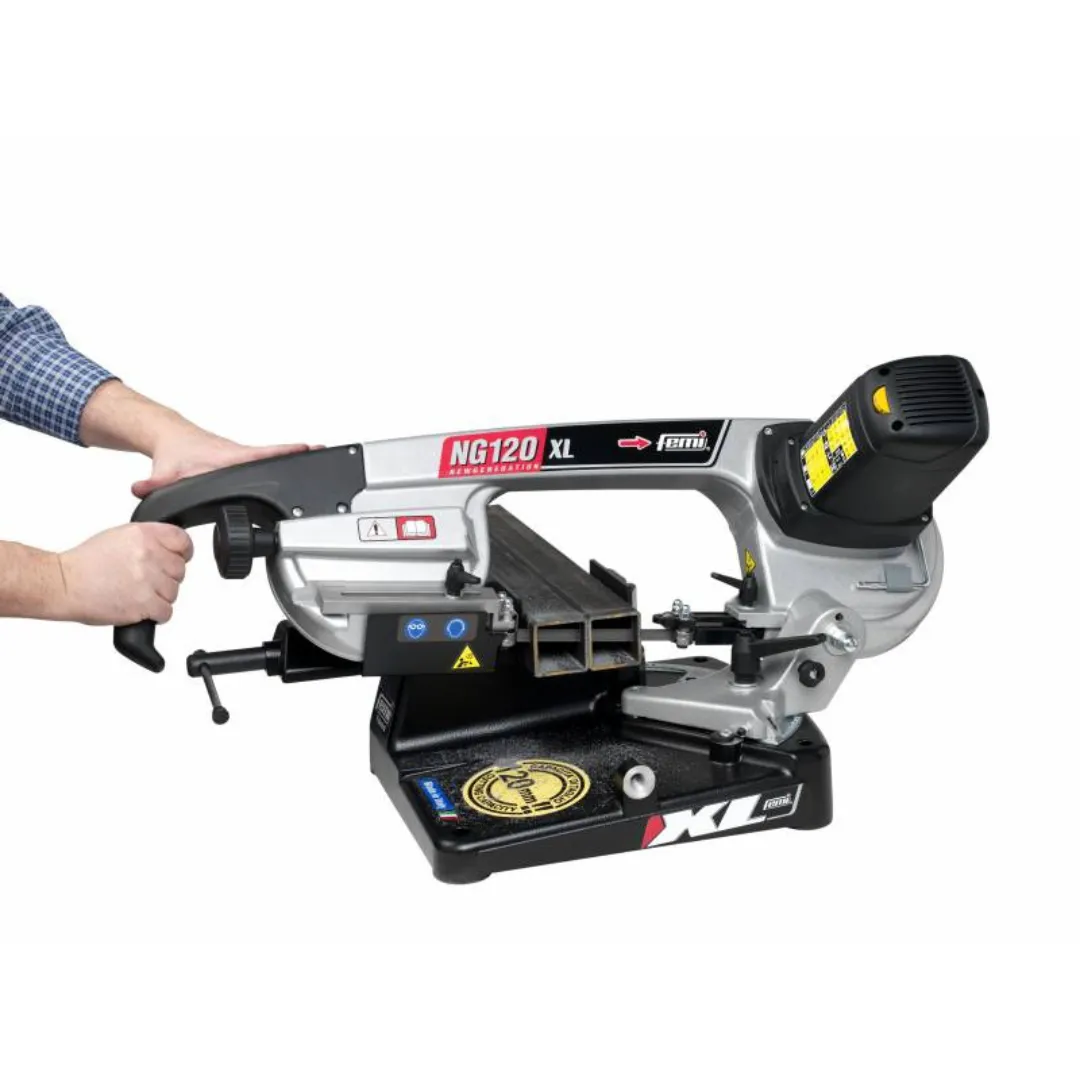

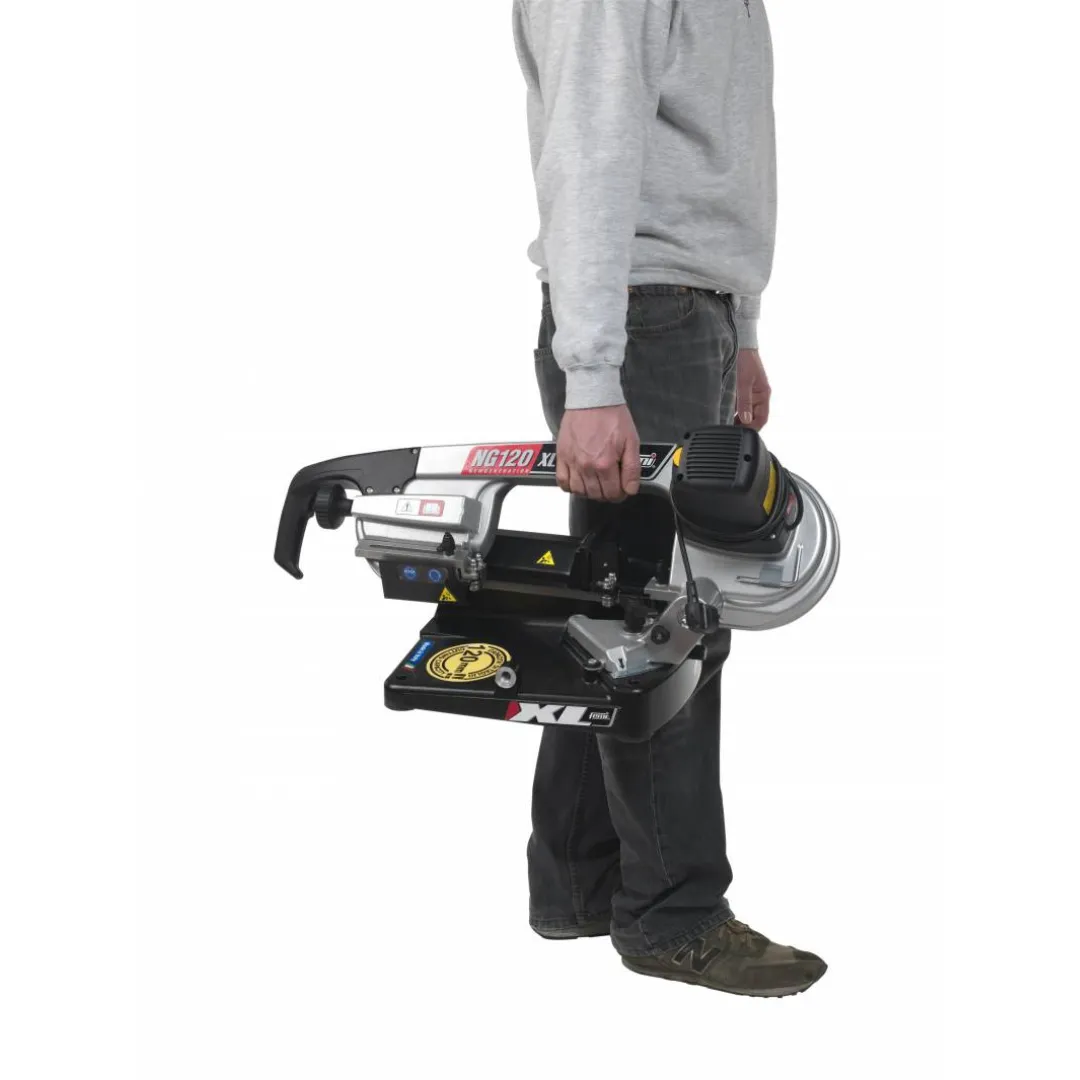

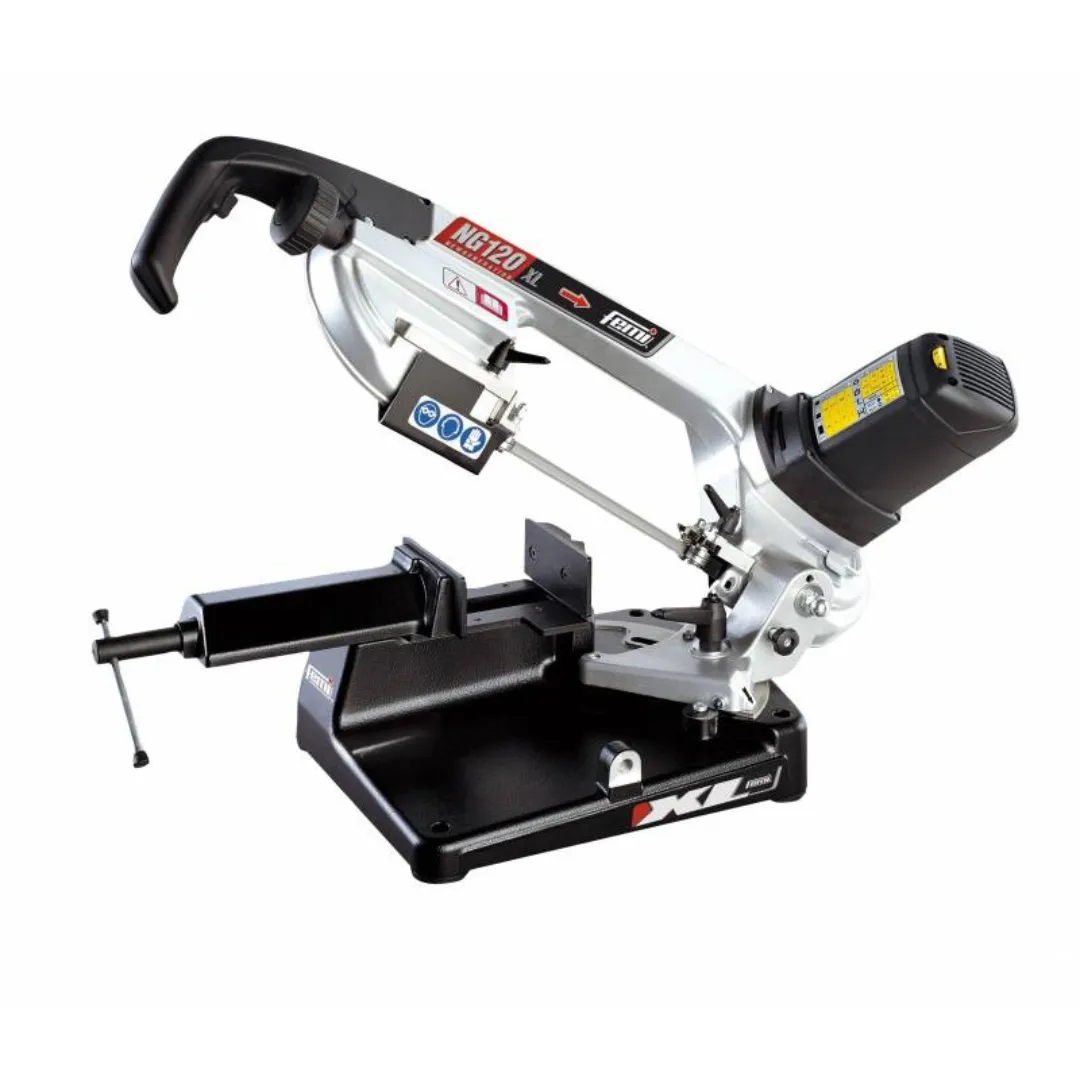

FEMI NG120XL Portable Metal Cutting Bandsaw
The Femi mitering head portable band saw is great for light industrial work & heavy home shop use. This saw offers industrial precision cutting at an affordable price. The die-cast aluminum construction of the entire base and head equates to a very lightweight, yet durable cutting platform. The variable-speed motor aids in cutting both ferrous and non-ferrous metals, while the 60 degree swiveling miter head makes miter cuts a breeze. Since the saw is a dry cutting saw, there is never any coolant to clean up. The 'New Generation' reverse blade rotation results in a 60% faster cutting than other saws with a similar capacity. An adjustable length stop is included for easily repeatable cuts.
- Up to 60% faster cutting compared to the traditional bandsaw thanks to the opposite rotation direction of the bandsaw blade (“NG SYSTEM”)
- Innovative blade tensioning device with clutch to check and adjust the proper tension of the blade (patented)
- Adjustable left cutting angle from 0° to 60°with quick block at 45° and 60°
- Powerful 1300 W single-phase motor equipped with digital electronic speed regulator “Constant Speed” with amperometric limiting device
- Double front and rear sliding saw blade guides
Cutting capacity
| 0° | 120x102 mm | 120 mm | 112x112 mm |
|---|---|---|---|
| 45° | 78x78 mm | 80 mm | 78x78 mm |
| 60° | 50x43 mm | 50 mm | 48x48 mm |
| Arm downfeed | Manual |
|---|---|
| Blade development (mm) | 1440x13x0,65 |
| Motor power (watt) | 1300 |
| Electrical supply (Volt-Hz) | 120 - 60 |
| Weight (Kg) | 18 |
| Blade speed (mt/min) | 35÷80 Digital electronic speed regulator Constant Speed |
| Toothing Z/1" | 14 |
| Packaging (mm) | 900x400x520 |
